June 14, 2023

Iceberg Metadata Deep Dive

Key Concepts

  • metadata file -
    • the entry point of table, the current_snapshot_id
    • has all metadata like schema spec, partition spec etc
    • backed the $snapshots metatable.
    • maintenance requirement: as new file for each commit, and set table properties write.metadata.previous-versions-max
    • e.g. 00247-74e94d3d-871c-4e20-a217-2fb9c5ffb430.metadata.json
  • manifest list -
    • a.k.a snapshot, is a point-in-time consistent view of table
    • backed the $manifests metatable
    • used to filter query on partitions
    • maintenance requirement: expire_snapshots to keep metadata file/manifest list for bloating and release the reference for old files.
    • e.g. snap-6301781580282422576-1-de30417a-c9a9-4f5f-9c64-944f9111ab0e.avro
  • manifest file -
    • work like a commit, a unit of work.
    • backed the $files metatable
    • used to filter query on column metrics
    • maintenance requirement: rewrite_manifests to speed up the metadata loading and release reference of old snapshots.
  • data file -
    • the real table data file in parquet
    • maintenance requirement: rewrite_data_files and expire_snapshots to consolidate small files and also help to maintain the manifest file size, remove_ophan_files to keep the table metadata and data in sync.

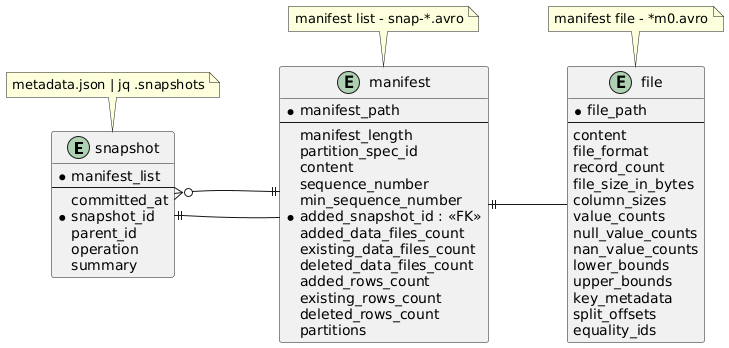

  • one commit (dataframe write/delete/overwrite) → one snapshot → one added_snapshot_id → one new manifest_list file snap-*.avro → one new manifest file *-m0.avro → one new sequence number
  • The top to bottom dependency also implies the maintenance should be bottom to top to release the reference.

  • same color blocks created by the same commit
  • 4 operations in left to right sequence.
